CKEV-AC7/14 AC Charger
- Strong Compatibility
- Compatible with mainstream EV brands, usable directly without additional adapters, with strong adaptability.
- Convenient Installation & Maintenance
- Easy installation and maintenance, high reliability, reduced failure rate, saving repair time and cost.
- Ultra-Low Power Consumption
- Low-power design with strict standby power control for outstanding energy savings.
- Safe and Reliable
- Features multiple protection mechanisms including leakage, emergency stop, and short-circuit protection, ensuring charging process safety and stability; the 7kW AC charger has obtained CCC certification.
►Overview

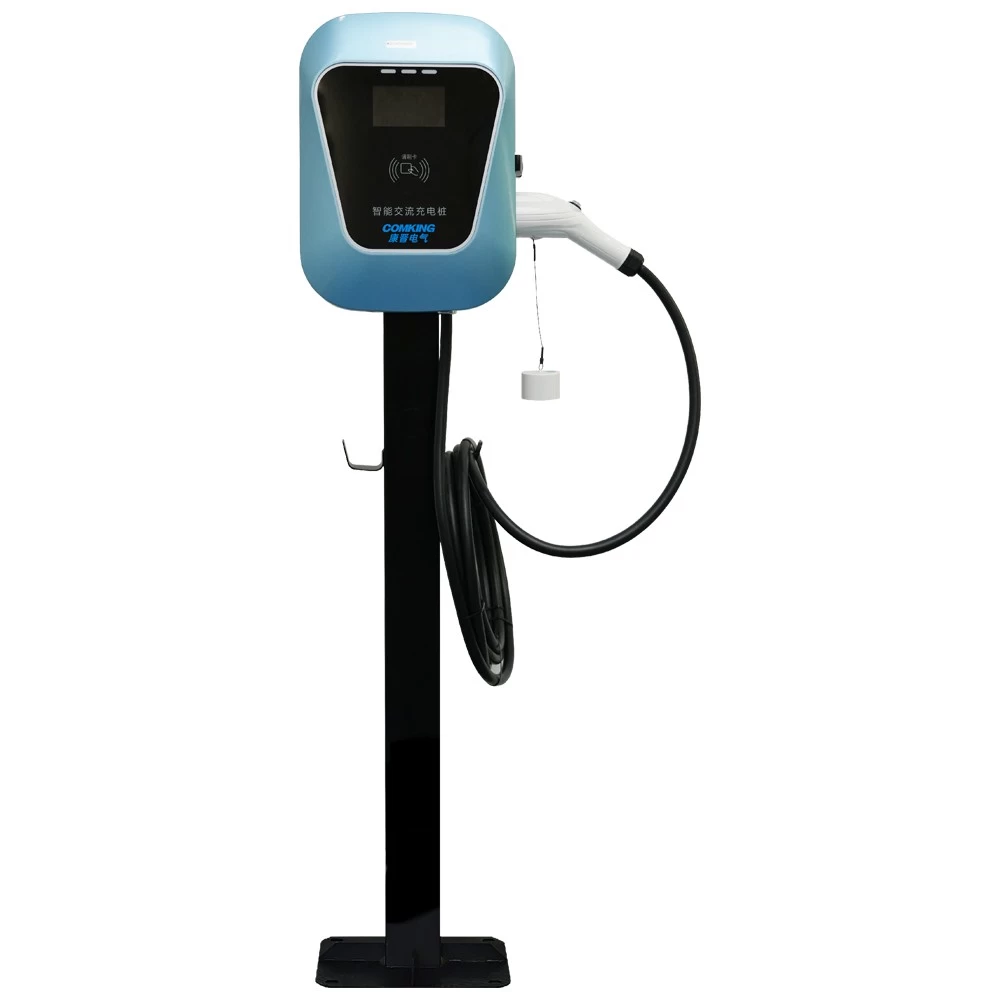

The 7kW/14kW AC Charger comes in wall-mounted and pedestal versions, an efficient, intelligent, and safe EV charging device using advanced charging technology with 4G/Ethernet communication for a more stable and reliable charging experience.
►Technical Parameter
| Product Name | 7kW AC Charger, Single Gun | 14kW AC Charging Pile (Dual Guns) |
| Product Model | CKEV-AC7 | CKEV-AC14 |
| AC Input Voltage | AC220±15% （Single phase） | |
| AC Input Frequency | 45~55Hz | |
| Output Voltage | AC220±15% （Single phase） | |
| Output Current | 32A（max） | 2×32A（max） |
| Rated Output Power | 7kW | 14kW |
| Display | 4.3" Display (Optional) | |
| Charging Interface | GB/T Charging Interface | |
| Number of Charging Guns | Single gun, 5m (customizable) | Dual gun, 5m (customizable) |
| Charging Activation | Local Card Swipe or QR Code Activation | |
| Card Reader | ISO14443 Type A | |
| Communication Interface | 4G All-Network Access or Ethernet | |
| Operating Ambient Temperature | -20℃~+50℃ | |
| Cooling Method | Natural Cooling | |
| Standby Power Consumption | ≤7W | |
| Safety Features | Overvoltage, Undervoltage, Overload, Overcurrent, Short Circuit, Grounding, Over-temperature, Lightning, and Emergency Stop Protection | |
| Relative Humidity | 5%~95% | |
| Altitude | ≤2000 m | |
| Protection Rating | IP54 | |
| Installation Method | Wall-Mounted / Pedestal | |
| Enclosure Material | Plastic Enclosure | |
| Applicable Standards | GB/T20234.1-2015, NB/T 33002—2018, NB/T 33008.2-2018 | |
►Product Features
Strong Compatibility
Compatible with mainstream EV brands, usable directly without additional adapters, with strong adaptability.
Convenient Installation & Maintenance
Easy installation and maintenance, high reliability, reduced failure rate, saving repair time and cost.
Ultra-Low Power Consumption
Low-power design with strict standby power control for outstanding energy savings.
Safe and Reliable
Features multiple protection mechanisms including leakage, emergency stop, and short-circuit protection, ensuring charging process safety and stability; the 7kW AC charger has obtained CCC certification.
Contact us for AC EV Charger Factory China gets Solution.
