CKEV-AC11/22 AC Charger
- Durable and Aesthetic
- Ultra-long service life, standby power consumption as low as 5W, LED charging status display.
- Smart and User-Friendly
- Remote start, data monitoring, metering accuracy meets Active Class 1.0, intelligent power regulation.
- Convenient Installation & Maintenance
- Wall-mountable or pedestal, easy to assemble, maintain, and install, compact size, with APP-based search, reservation, and fast charging functions.
- Safe and Reliable
- High-quality heat-resistant enclosure, multiple protection layers, emergency stop switch, safe and reliable, IP54 protection rating.
►Overview

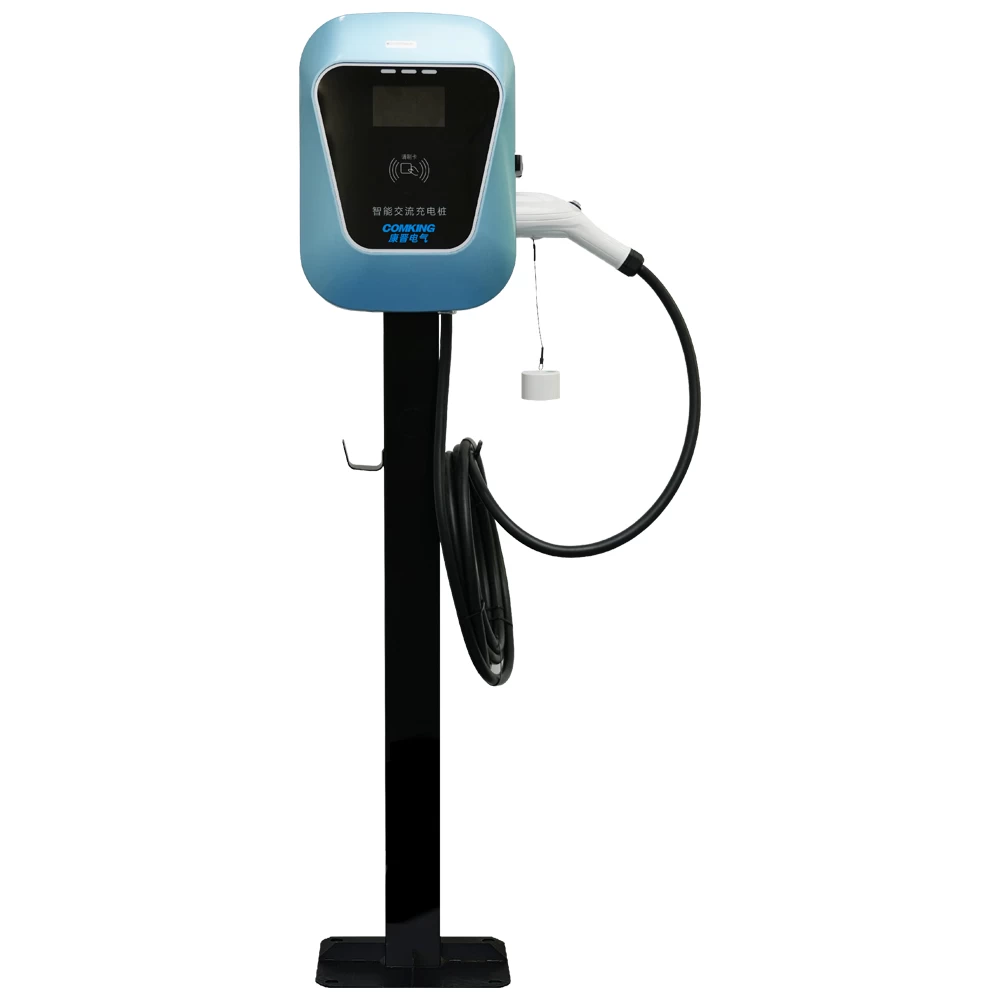

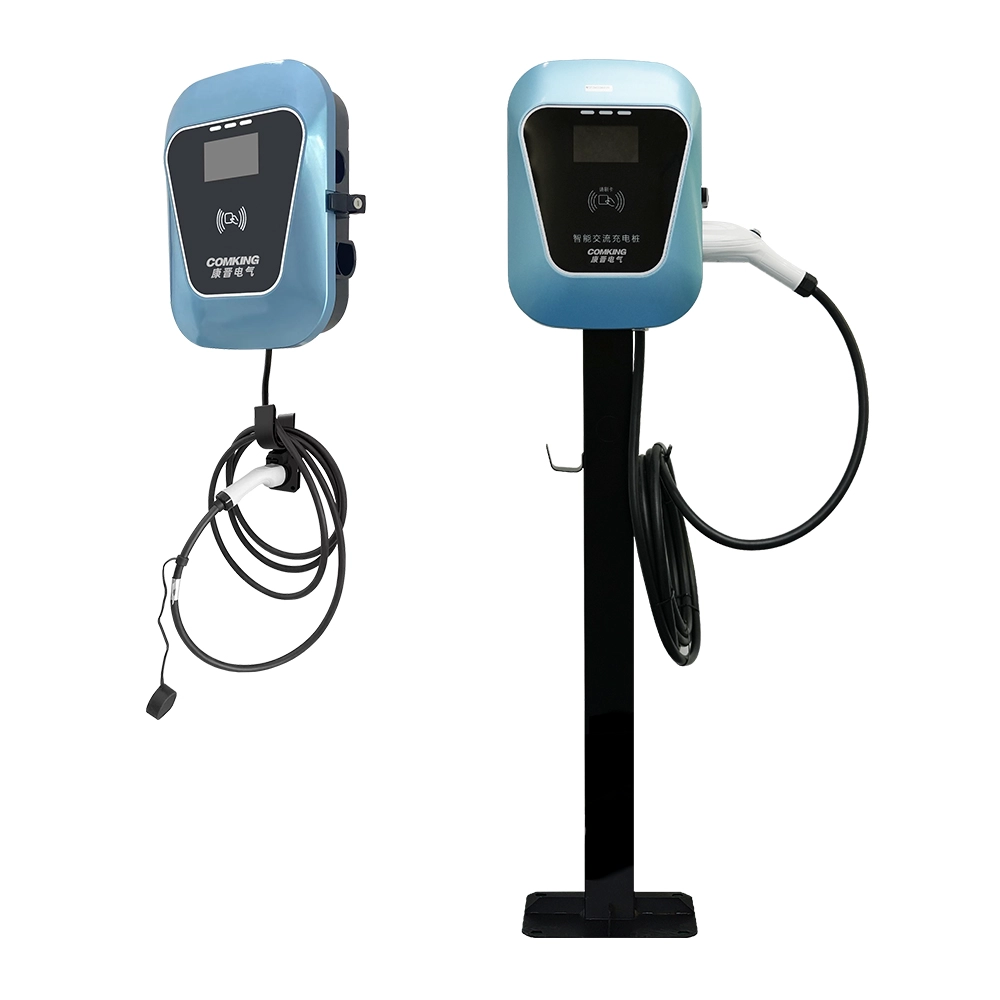

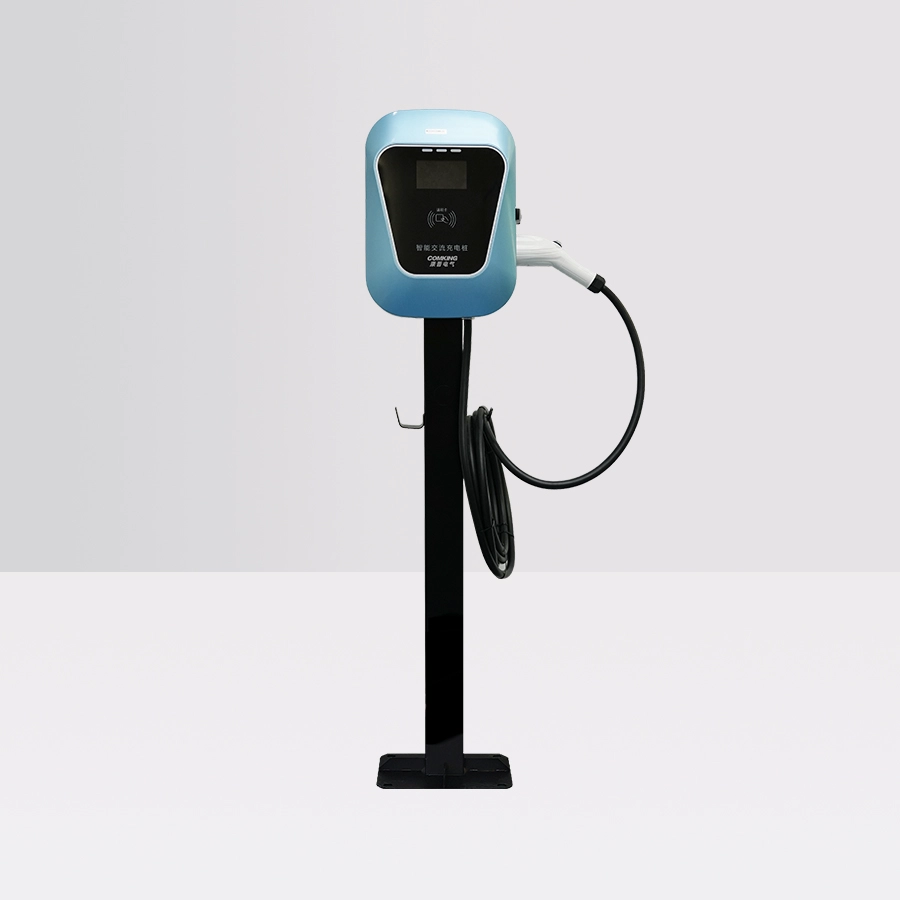

The 11kW/22kW AC Charger comes in wall-mounted and pedestal versions, providing AC power to EVs with onboard chargers. The product features high integration, small footprint, simple operation, safety and reliability, with control, billing, and communication functions.
Both products have obtained CE certification.
►Technical parameter
|
Product Name |
11kW AC Charger（Three-phase） |
22kW AC Charger（Three-phase） |
|
Product Model |
CKEV-AC11 |
CKEV-AC22 |
|
Rated Power |
11kW |
22kW |
|
Connector & Cable |
Single gun, 5m (customizable) |
|
|
Display |
4.3" Display (Optional) |
|
|
Input Voltage |
AC380±15% |
|
|
Input Frequency |
50/60Hz |
|
|
Output Voltage |
AC380±15% |
|
|
Output Current |
16A（max） |
32A（max） |
|
Operating Temperature |
-20℃~+50℃ |
|
|
Protection Rating |
IP54 |
|
|
Charging Activation |
Plug-and-Play, Card Swiping & APP Control |
|
|
Communication |
4G/Ethernet |
|
|
Backend Protocol |
OCCP1.6 |
|
|
Safety Features |
Overvoltage, Undervoltage, Overload, Short Circuit, Grounding, Over-temperature, Low Temperature, Lightning, Emergency Stop, and Leakage Protection |
|
|
Installation Method |
Wall-Mounted / Pedestal |
|
|
Main Unit Dimensions |
285*120*400mm |
|
►Product features
Durable and Aesthetic
Ultra-long service life, standby power consumption as low as 5W, LED charging status display.
Smart and User-Friendly
Remote start, data monitoring, metering accuracy meets Active Class 1.0, intelligent power regulation.
Convenient Installation & Maintenance
Wall-mountable or pedestal, easy to assemble, maintain, and install, compact size, with APP-based search, reservation, and fast charging functions.
Safe and Reliable
High-quality heat-resistant enclosure, multiple protection layers, emergency stop switch, safe and reliable, IP54 protection rating.
Contact us for 20kW/30kW/40kW charging pile supplier gets Solution.
