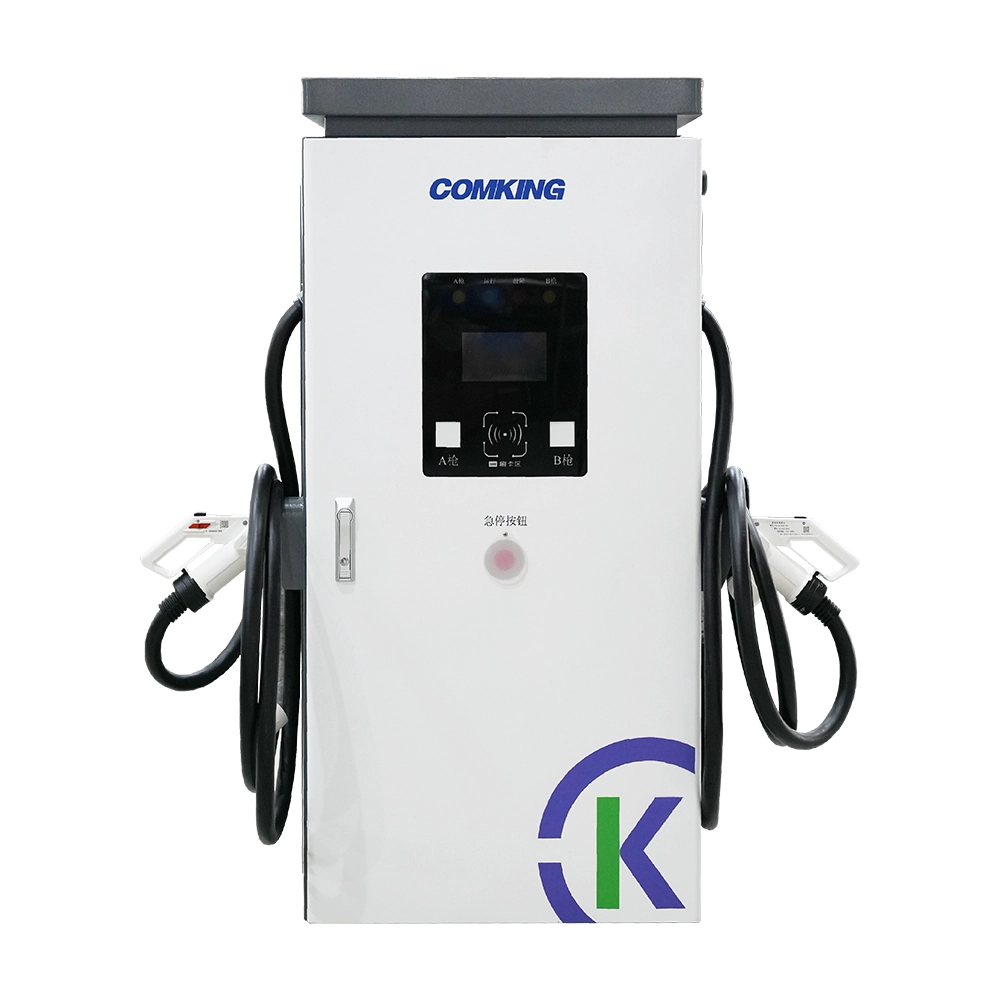

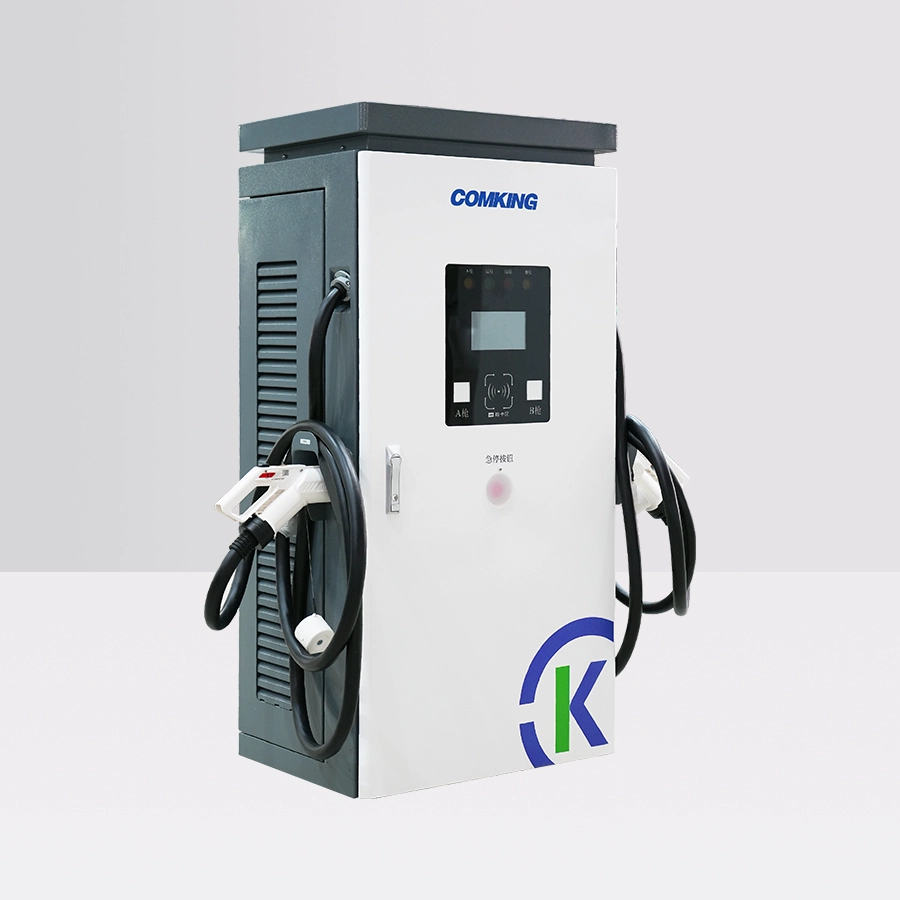

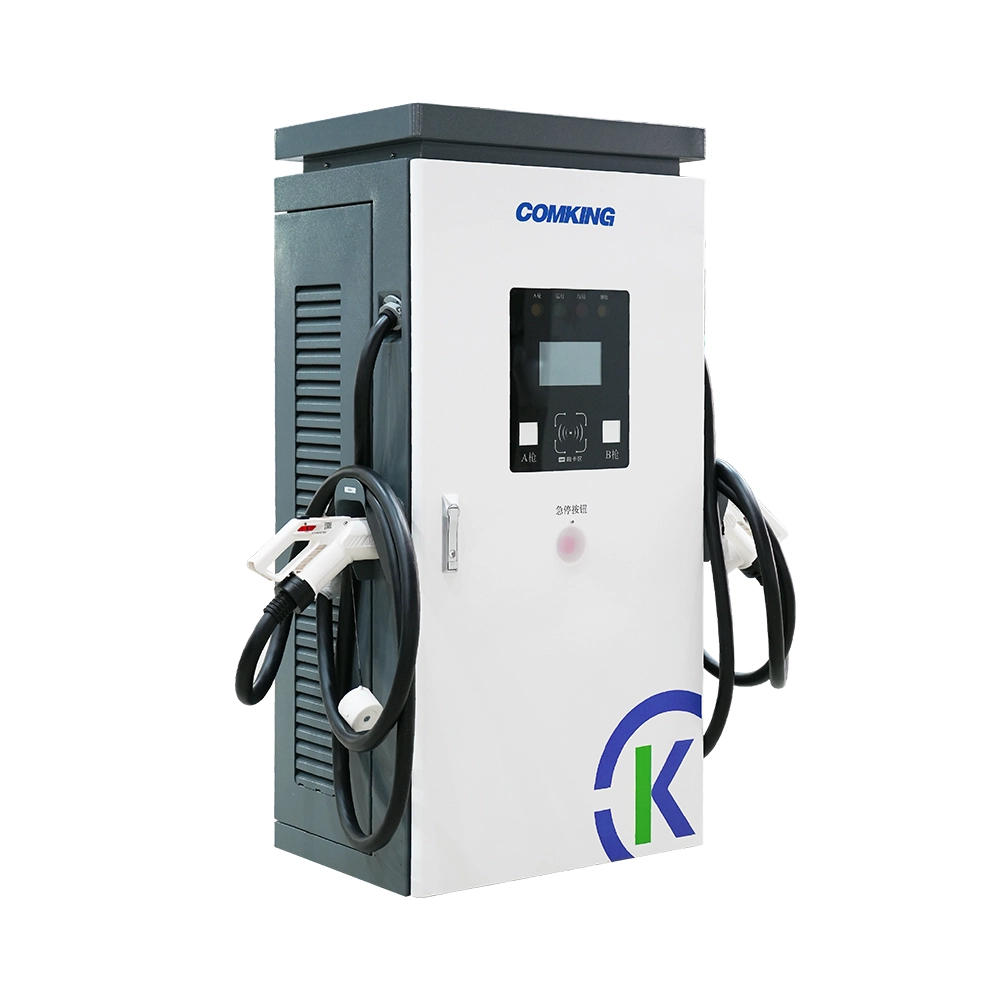

CKEV-DC120/160 DC Charger
- The 120kW/160kW DC Charger integrates power conversion, charging control, HMI control, communication, and billing/metering with IP54 protection rating, supporting 24/7 indoor/outdoor safe operation. The power conversion unit follows modular design principles with flexible 40kW/80kW/120kW/160kW configurable output, supporting mainstream charging and communication protocols, compatible with 99% of EV models, delivering a fast and stable charging experience.
►Overview
The 120kW/160kW DC Charger integrates power conversion, charging control, HMI control, communication, and billing/metering with IP54 protection rating, supporting 24/7 indoor/outdoor safe operation. The power conversion unit follows modular design principles with flexible 40kW/80kW/120kW/160kW configurable output, supporting mainstream charging and communication protocols, compatible with 99% of EV models, delivering a fast and stable charging experience.
►Product features
Flexible Configuration
Charger supports 30kW and 40kW charging modules with multiple power configuration options to meet customization needs.
Safety Assurance
Multiple protection layers with IP54 overall protection rating. The above series have all obtained CCC certification reports.
Strong Compatibility
Excellent compatibility with new and old national standards; BMS auxiliary power 12V/24V selectable.
Stable and Reliable
Module potting process, control power protection, operational data backup.
►Technical parameter
|
Product Name |
120kW DC Charger |
160kW DC Charger |
|
Product Model |
CKEV-DC120 |
CKEV-DC160 |
|
AC Input Voltage |
AC380±15% （Three-Phase） |
|
|
AC Input Frequency |
45~55Hz |
|
|
DC Output Voltage Range |
DC200-1000V |
|
|
Output Current |
250A（max） |
|
|
Rated Output Power |
120kW |
160kW |
|
Efficiency |
≥ 94% (above half load) |
|
|
Display |
7-inch LCD Touch Screen |
|
|
Number of Charging Guns |
Dual gun, 5m (customizable) |
|
|
Charging Activation |
Card Swiping / QR Code Scanning / VIN Recognition |
|
|
Card Reader |
ISO14443 Type A |
|
|
Communication Interface |
4G All-Network Access, Ethernet |
|
|
Operating Ambient Temperature |
-20℃~+50℃ |
|
|
Cooling Method |
Smart Air Cooling |
|
|
Standby Power Consumption |
≤30W |
|
|
Safety Features |
Overvoltage, Undervoltage, Overload, Overcurrent, Short Circuit, Grounding, Over-temperature, Lightning, and Emergency Stop Protection |
|
|
Relative Humidity |
5~90%RH, Non-condensing |
|
|
Altitude |
≤2000 m |
|
|
Protection Rating |
IP54 |
|
|
Noise |
＜65dB |
|
|
Installation Method |
Floor-standing |
|
|
Enclosure Material |
Sheet Metal Powder-Coated Enclosure |
|
Contact us for DC Charging Pile gets solution.
