►Overview

The CK-NFPP-Na Standard Module integrates sodium-ion battery cells through series and parallel connections to form a battery module. Paired with a battery management system, thermal management system, and structural components, it constitutes a complete battery pack. As the end application form of sodium-ion batteries, its core materials utilize a sodium salt cathode (such as iron-manganese-nickel-based materials) and a hard carbon anode, providing advantages of abundant resources and low cost. Among them, the CK-NFPP-Na-52S offers wide applicability and is primarily used in small-scale commercial and industrial energy storage cabinets; The CK-NFPP-Na-104S delivers superior system efficiency and is the mainstream choice for large-scale energy storage containers.

►Product features

• Excellent performance: Liquid-cooled thermal management enables a cycle life exceeding 8,000 cycles (capacity retention ≥80% at 25°C).
• Safe and reliable: Three-Level Protection + Aerogel thermal insulation + Multi-Sensor Monitoring + Pack-Level Fire Suppression + Passive Safety Design provide comprehensive risk prevention.
• High protection rating: Reaches IP67, isolating against coolant leakage and condensation ingress to ensure thermal management stability.

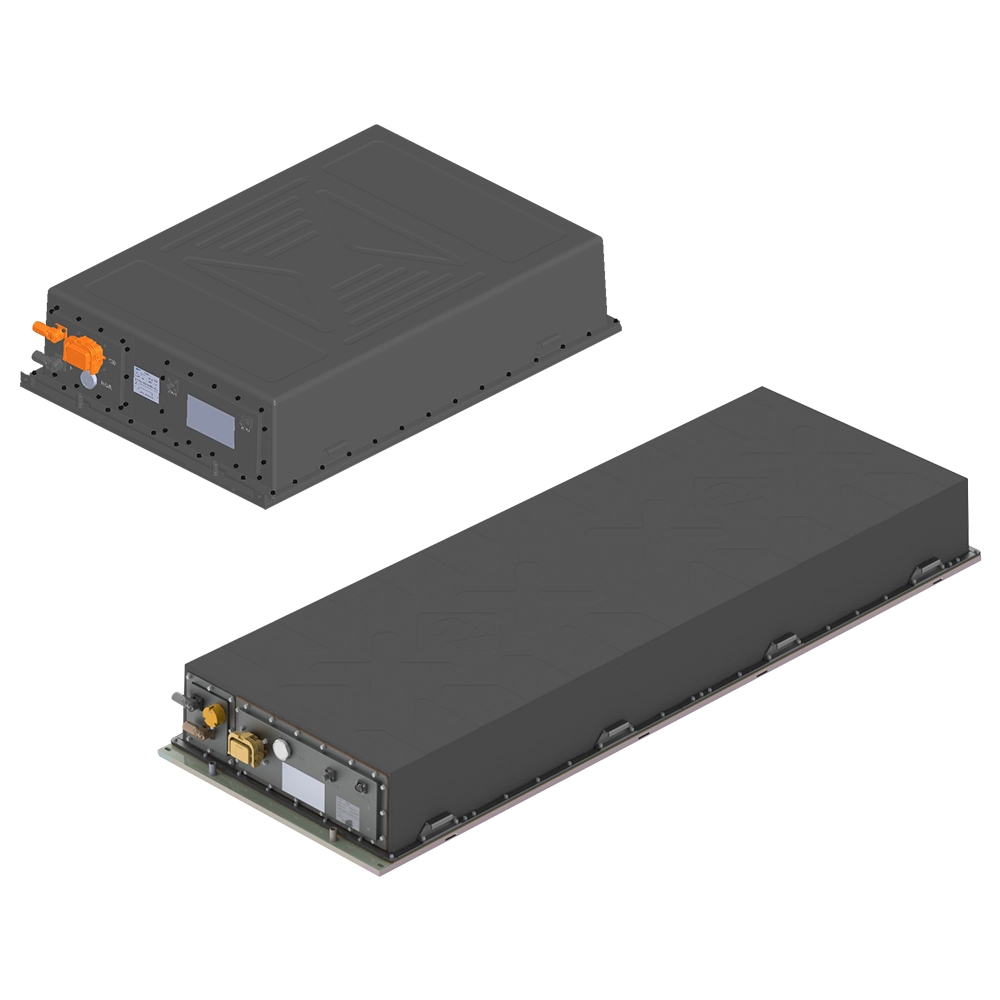

The battery modules are all in plug box form, comprising two specifications: Comking Energy Storage PACK model CK-NFPP-52, rated at 148.2V/160Ah, consisting of 4 1P13S battery modules; model CK-NFPP-104, rated at 296.4V/160Ah, consisting of 8 1P13S battery modules. Both are equipped with collection harnesses, BMU modules, Pressure Relief Valves, fuses, liquid cooling plates, MSD, and other related electrical and structural components.

►Technical parameter
